◎適用于小口徑閥門通徑：DN15/100法蘭式、焊接式的閥門的壓力性能試驗。
◎左邊抱壓式測試帶法蘭的閥門，工作臺有90度翻轉功能，右邊頂壓式測試焊接閥無法蘭的閥門，二者都可將工件沉入水箱中，適應氣體壓力試驗，操作方便。◎系統內配置高，低壓水泵供壓裝置，試驗介質循環貯存使用。
◎試壓介質為水、氣，由用戶任意選擇。
◎設有試壓安全保護裝置。
◎可訂配智能檢測數據管理系統。

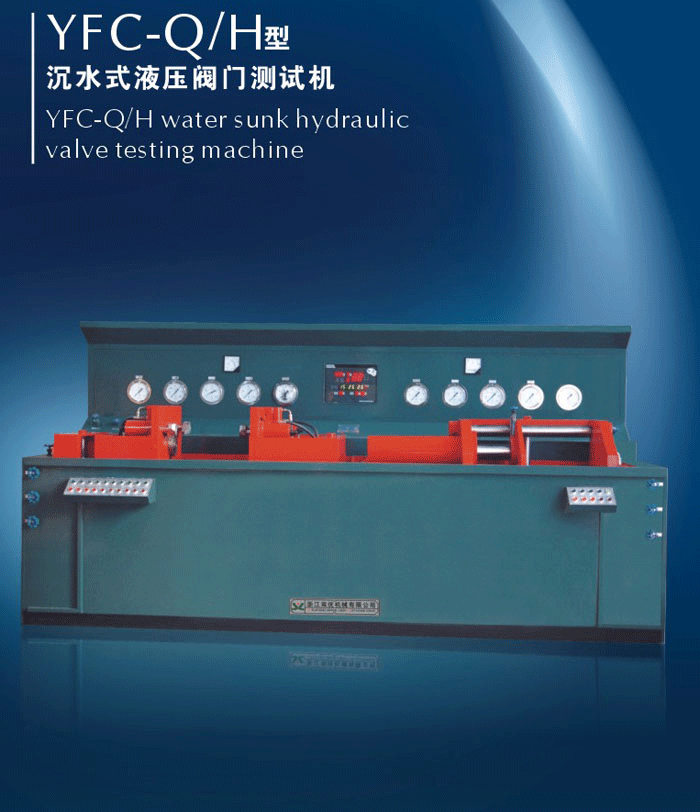

◎Suitable for small caliber valve nominal diameter: DN15/100 flange and welding valve pressure performance test .
◎Left press-hold type test valve with flange, its worktable has 90 degree overturn function, right press-top type test welding valve with no flange, both all can let the workpiece sink into water tank, fit to gas pressure test, operating conveniently.◎High disposition built-in system, low pressure water pump device, test medium circulation storage use.
◎The trial pressure medium can be water or gas that can be selected freely by users.
◎It sets the trial pressure safe protection device.
◎It can match the intelligent detection data control system. |
