1 按鈕板
Button board |
2 時鐘
Clock |
|
3 壓力表
Pressure meter |
4 壓力表開關
Pressure meter switch |
|
5 壓緊活塞桿
Impact piston rod |
6 壓爪
Press claw |
|
7 高壓水泵
High pressure water pump |
8 低壓水泵
Low pressure water pump |
|
9 工作盤(小)
Working disc (small) |
10 液壓油箱
Hydraulic oil tank |
|
11 工作盤(大)
Working disc (large) |
|
|

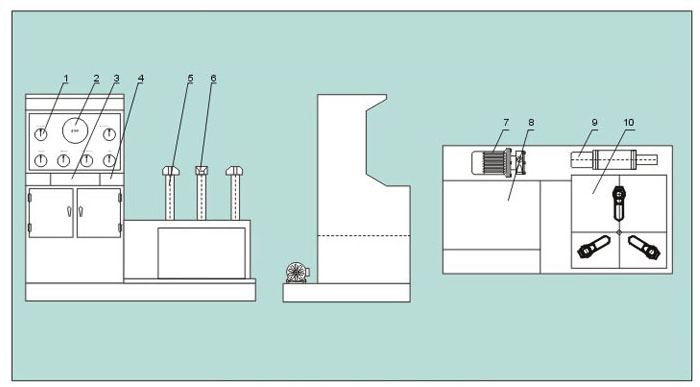

YFC-D外型結構示意圖(套式)YFC-D Overall structure schematic diagram (set type) |
